Smart WIFI Natural Gas Flammable Gas Alarm with Gas Valve Manipulator
Smart Gas Detector FD-01 is an instrument which detect combustible gas leakage in door. The concentration range of measurement is 0-100% LEL. FD-01 adopts highly sensitive sensors to monitor combustible gas leakage with high accuracy, stability and reliability.It can detect the temperature of the environment, and the detection range is - 40 ~ 80 ºC. The instrument has two-level alarm function. The factory default low alarm threshold is 10% LEL, and the high alarm threshold is 50% LEL.
FD-01 adopts 32-bit Arm Series CPU, with high processing speed, high performance and low power consumption. The response time T90 is less than 30s, and the response speed is very fast. The instrument adopts high sensitivity sensor, and the detection accuracy of combustible gas leakage can reach 0.1% LEL.
The power supply of FD-01 is AC 220 V . It can monitor the gas leakage in the environment in real time and send out sound and light alarm, APP alarm and SMS reminder. It equipped with gas valve manipulator can cut off the gas source automatically in real time.
FD-01 has been calibrated before leaving the factory, and users can use it directly.
1. Product model: FD-01.
2. Monitoring gas: methane (combustible gas mainly composed of methane, such as natural gas, biogas, etc.).
3. Detection principle: semiconductor type.
4. Measurement range: 0-100% LEL.
5. Measurement accuracy: 0.1% LEL.
6. Alarm threshold: 10% LEL.
7. Power supply voltage: AC 220 v.
8. Response time: T90 < 30s.
10. Storage temperature: - 40 ~ 80 ºC.
11. Communication mode: WiFi.
12. Gas alarm mode: flash, sound alarm, SMS alarm, APP alarm.
13. Alarm volume: 85dB.
14. Sampling method: .
15. Specifications and dimensions: diameter 95mm, height 33mm.
16. Weight: About 100g.
WiFi matching app operation process
Connect the mobile phone to the Internet, open the smart gas app, register and log in the account, as shown in the figure below:
Enter "personal center" > "device configuration", and click "scan" to scan the QR code on the back of FD-01, as shown in Fig.5-2 below:
Click "bind device" and jump to WiFi network selection interface. At this time, the user selects his own WiFi network, as shown in fig.5-3 below. Connect WiFi and enter the password. Wait for one minute and app will automatically complete WiFi binding.
Wuhan Energy Technology Engineering Co., Ltd. and Wuhan Energy Testing Technology Co., Ltd. are located in Wuhan China Optical Valley Center. We are professional companies engaged in the development and sales of pipeline safety testing equipment, instruments and special testing services. The company has a team of masters and experienced engineers and managers. Energy cooperates closely with its mother company, YJ International High-Tech Equipment Co., Ltd., and is committed to introducing advanced technologies and equipment from the United States and other developed countries, and developing related products suitable for the Chinese pipeline market.
Team
Wuhan Energy has an experienced pipeline network inspection team and a Chinese technical service center authorized by manufacturers in the United States and the United Kingdom. The professional services provided engineering service include: underground pipeline cathodic protection system and anti-corrosion layer inspection; comprehensive safety assessment of pipeline system; Risk assessment of pipeline systems; rapid inspection of gas pipelines and location of leaks; location and detection of underground pipeline networks; technical consultation; training, maintenance, repair, calibration, etc. of pipeline safety inspection equipment. In a number of technical service work, Energy has been widely praised by customers.

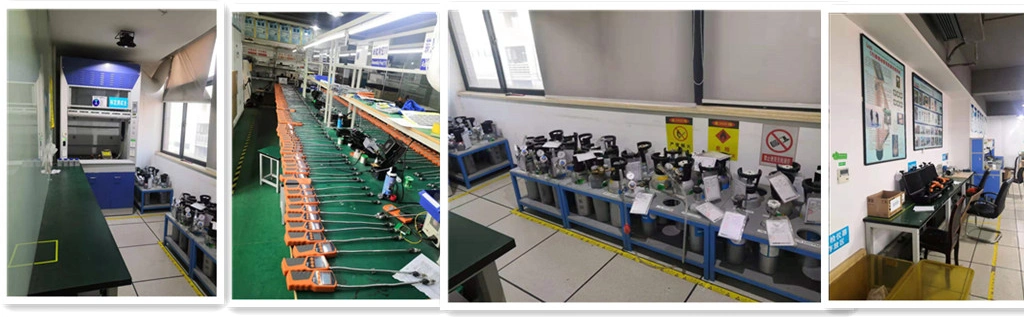

Energy has a complete production line, and the production operation strictly follows the requirements of IS9001. The laboratory is in charge of professional engineering personnel, calibration and maintenance are carried out regularly. There are 20 production personnel, most of whom have professional technical capabilities, and produce 5,000 gas detectors per month.
